Why More Young Mechatronics’ Customers Are Moving Beyond ⅞”

Across industrial automation, a clear shift is underway. More and more customers are specifying M12 L-Code connectors for power—replacing traditional ⅞” connectors in new designs.

The reason is simple: M12 L-Code delivers more power in less space, conforms with IEC standards and integrates seamlessly into today’s machine architectures.

Why Engineers Are Choosing M12 L-Code

1. Smaller footprint, more design flexibility

Compared to the long-standing ⅞” connector, M12 L-Code connectors are approximately 30–40% smaller. That size reduction creates real value in modern designs.

A smaller connector footprint:

Frees up cabinet and enclosure space
Simplifies routing in dense layouts
Leaves room for additional components or future expansion

M12 L-Code connectors are approximately 30–40% smaller

2. High power capacity in a compact connector

M12 L-Code connectors aren’t just smaller—they’re built for serious power delivery.

Binder’s 823 Series L-coded connectors (DIN EN 61076-2-111) are designed specifically for DC power applications and feature:

4 + FE contacts
Rated current: 12 A / 16 A
Rated voltage: 63 VDC
Secure screw-locking mechanism

Available configurations include:

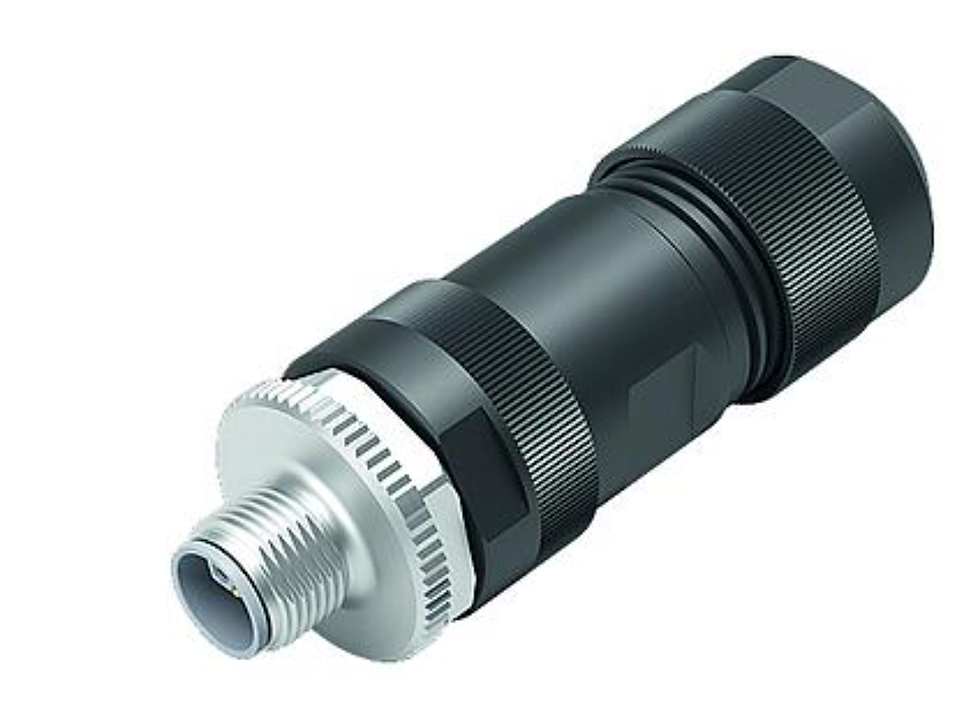

Straight and angled cable connectors with screw terminal connections
Flanged connectors with dip-solder terminals or stranded wire leads

This makes M12 L-Code an ideal replacement for ⅞” connectors where power density, reliability, and space efficiency all matter.

3. Easier routing and installation in real-world builds

Because M12 L-Code connectors use smaller-diameter cables, they often simplify cable routing—especially in compact machines or tight control cabinets.

For OEMs and integrators, that can mean:

Cleaner cable management
Faster installs
Less strain on connectors and mounting points

It’s a practical advantage that shows up quickly during assembly.

4. M12 L-Code is aligned with modern automation standards

While ⅞” connectors aren’t disappearing overnight, and adapters are available, the industry direction is clear. PROFINET standard is now M12 power supply connectors with L-coding, helping drive adoption across industrial networks and field devices.

Binder’s M12 L-Code connectors are:

UL 2238 and/or UL 2237 certified
Supported by a broad ecosystem of sensors, actuators, I/O blocks, and power supplies

Specifying M12 L-Code today helps ensure compatibility, availability, and long-term design confidence.

Why We Like Binder

Binder combines German engineering precision with strong North American support, custom configuration and tariff-free manufacturing in their 75,000 square-foot facility in California - where all their M12L cables are made.

Binder USA, headquartered in Camarillo, California, handles:

Local stocking and shipping
Stable lead times
Responsive technical and customer support
Custom configuration

As you move from prototype to production, this US footprint, along with the continuity provided by an established, family-owned company gives customers supply-chain and cost predictability that can’t be beat.
